# Applications

Application component-level health and resource usage across every validator.

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-58fbd347000a111d7790db70421157b6cb2fc1f6%2Fimage%20(169).png?alt=media" alt=""><figcaption></figcaption></figure></div>

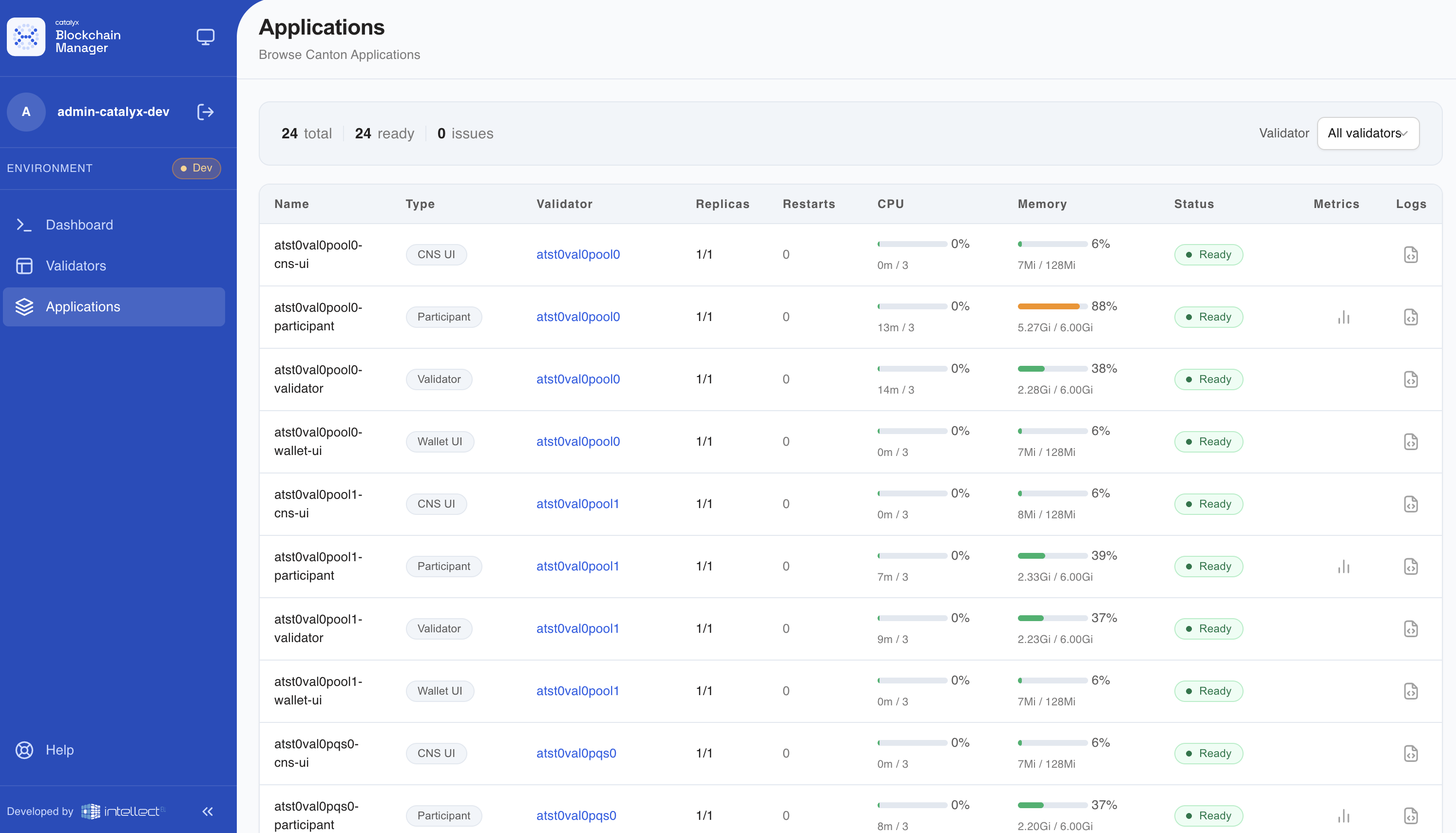

Where the Validators list is organised by validator, the Applications list is organised by **component**. It is the view to use when you are chasing a resource problem, a crash loop, or a configuration question about one specific workload.

{% hint style="info" %}
Applications are created and owned by the operator. Nothing on these screens changes them — to change a component, change the `Validator` resource that owns it.
{% endhint %}

## Overview

### Columns

<table><thead><tr><th width="150">Column</th><th>Contents</th></tr></thead><tbody><tr><td><strong>Name</strong></td><td>The application resource name, <code>&#x3C;validator>-&#x3C;component></code>.</td></tr><tr><td><strong>Type</strong></td><td><code>Participant</code>, <code>Validator</code>, <code>Wallet UI</code>, <code>CNS UI</code>, <code>PQS</code>, or <code>Wallet Gateway</code>.</td></tr><tr><td><strong>Validator</strong></td><td>Link to the owning validator.</td></tr><tr><td><strong>Replicas</strong></td><td><code>ready / desired</code>.</td></tr><tr><td><strong>Restarts</strong></td><td>Container restart count.</td></tr><tr><td><strong>CPU</strong></td><td>Utilisation bar and percentage, with <code>used / limit</code> beneath.</td></tr><tr><td><strong>Memory</strong></td><td>Same, in bytes.</td></tr><tr><td><strong>Status</strong></td><td><code>Ready</code>, or the operator's reason for not being ready, or <code>Unknown</code>.</td></tr><tr><td><strong>Metrics</strong></td><td>Grafana dashboard link. Participant components only.</td></tr><tr><td><strong>Logs</strong></td><td>Grafana logs link.</td></tr></tbody></table>

### States

| Situation            | What you see                                                                                             |
| -------------------- | -------------------------------------------------------------------------------------------------------- |
| No applications      | **No applications found** — *No Canton applications are deployed in this cluster.*                       |
| Filtered, none match | **No applications for this validator** — *No Canton applications are deployed for validator "`<name>`".* |
| Load failed          | **Failed to load applications**, with the error                                                          |

***

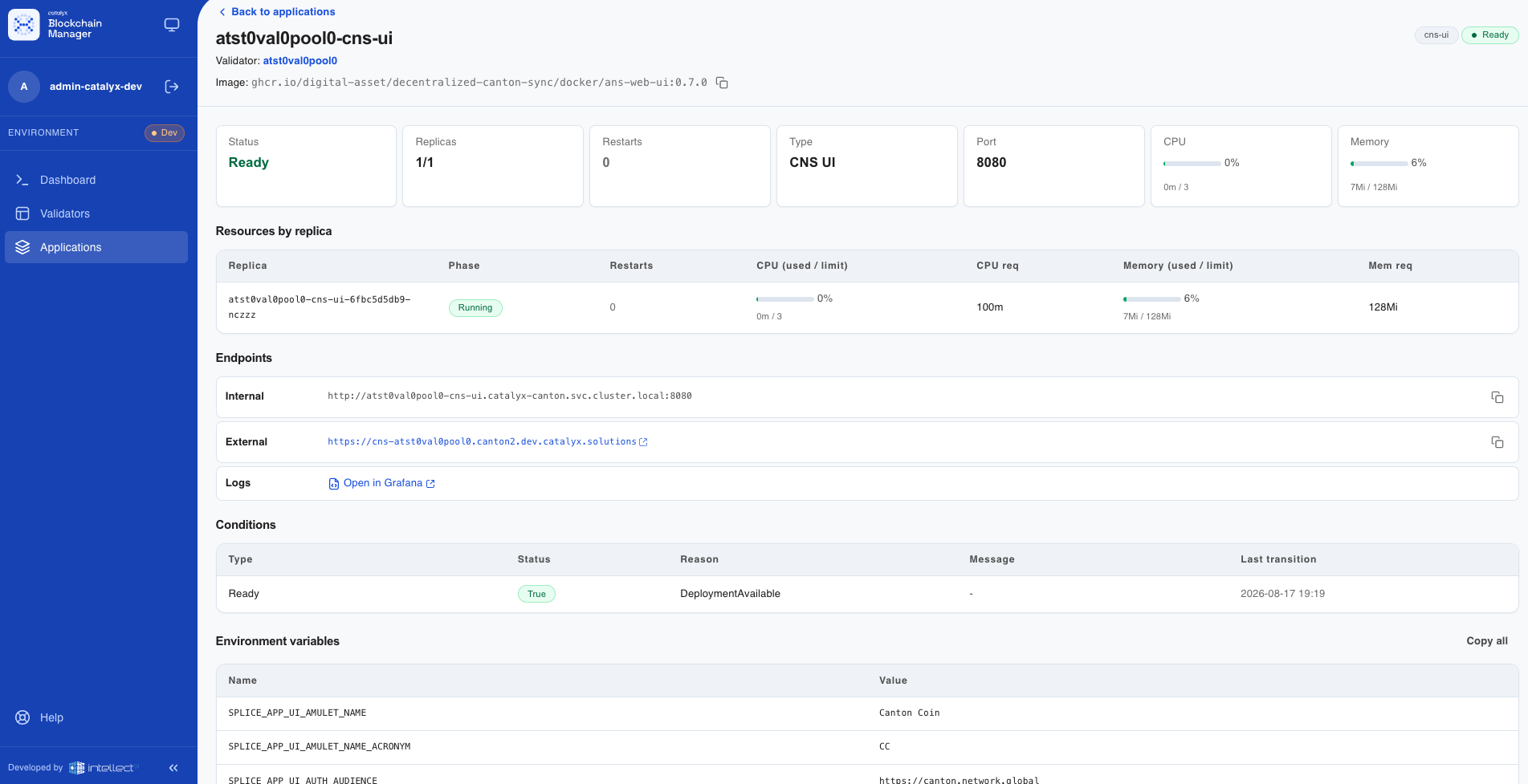

## Application details

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-502fc24f7f3fb6ac0df8a4fb74bf4ad2e677fbb0%2Fimage%20(170).png?alt=media" alt=""><figcaption></figcaption></figure></div>

Clicking a row opens a single scrolling page.

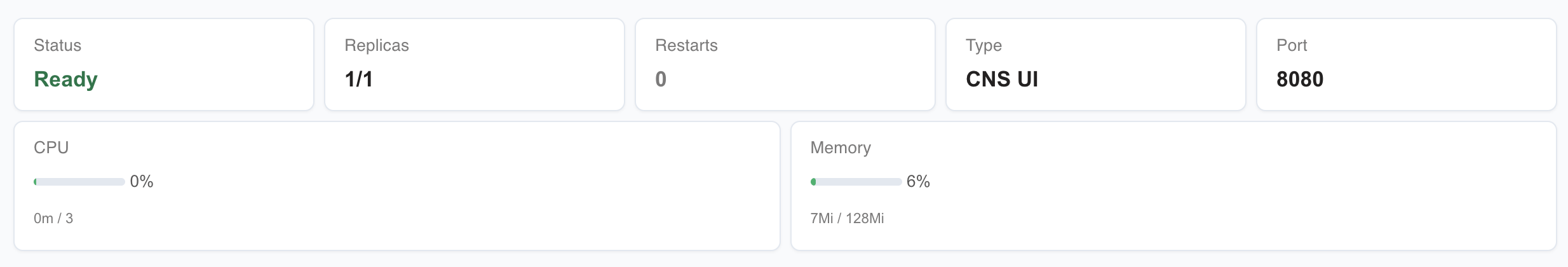

### Overview Cards

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-396c78af8e1cd3c557556487c5edddef77184f09%2Fimage%20(171).png?alt=media" alt=""><figcaption></figcaption></figure></div>

| Column   | Contents                                                                       |
| -------- | ------------------------------------------------------------------------------ |
| Status   | `Ready`, or the operator's reason for not being ready, or `Unknown`.           |
| Replicas | `ready / desired`.                                                             |
| Restarts | Container restart count.                                                       |
| Type     | `Participant`, `Validator`, `Wallet UI`, `CNS UI`, `PQS`, or `Wallet Gateway`. |
| Port     | The port the component's service listens on.                                   |
| CPU      | Utilisation bar and percentage, with `used / limit` beneath.                   |
| Memory   | Same, in bytes.                                                                |

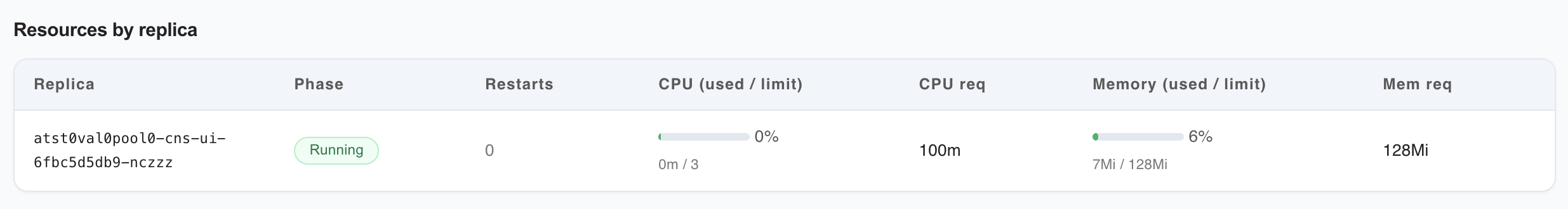

### Resources by replica

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-65444d225722fa606ad9abc525802ea519a2773b%2Fimage%20(172).png?alt=media" alt=""><figcaption></figcaption></figure></div>

| Column                                  | Contents                                       |
| --------------------------------------- | ---------------------------------------------- |
| **Replica**                             | The pod name                                   |
| **Phase**                               | The Kubernetes pod phase. `Running` is healthy |
| **Restarts**                            | Restart count for that pod                     |
| **CPU (used / limit)** · **CPU req**    | CPU usage against limit, and the request       |
| **Memory (used / limit)** · **Mem req** | Memory usage against limit, and the request    |

{% hint style="warning" %}
If a note says the cluster metrics API is not reachable, `metrics-server` is missing or unhealthy. Requests and limits still show; live usage does not.
{% endhint %}

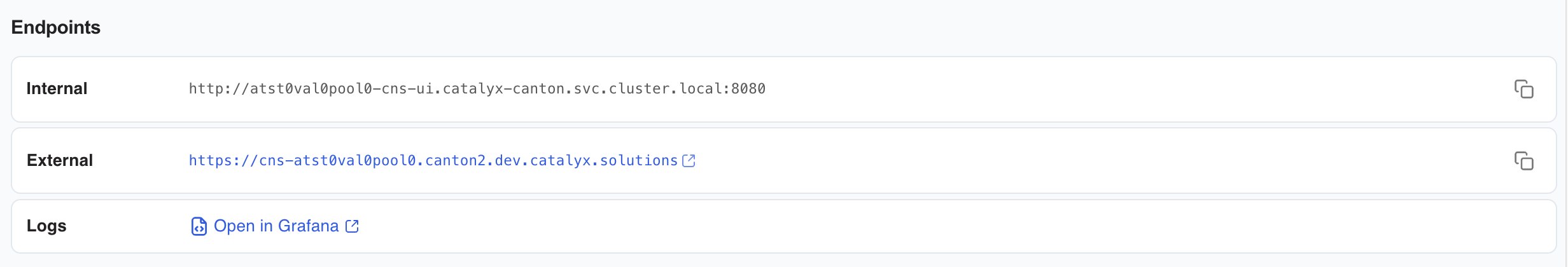

### Endpoints

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-d2264b8add26c83ec2b5e2259ea5c9a0e2c59750%2Fimage%20(173).png?alt=media" alt=""><figcaption></figcaption></figure></div>

**Internal** and **External** URLs, plus **Metrics** and **Logs**, which render as **Open in Grafana** links.

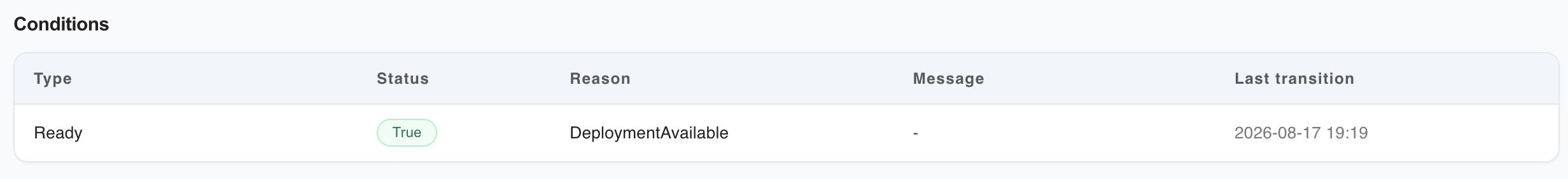

### Conditions

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-f8df213bd33cf1aa37fee33a671947119a1183c3%2Fimage%20(174).png?alt=media" alt=""><figcaption></figcaption></figure></div>

The component's Kubernetes conditions — **Type**, **Status**, **Reason**, **Message**, **Last transition**. `DeploymentNotFound` means the workload has not been created yet; `DeploymentUnavailable` means it exists but has too few available replicas.

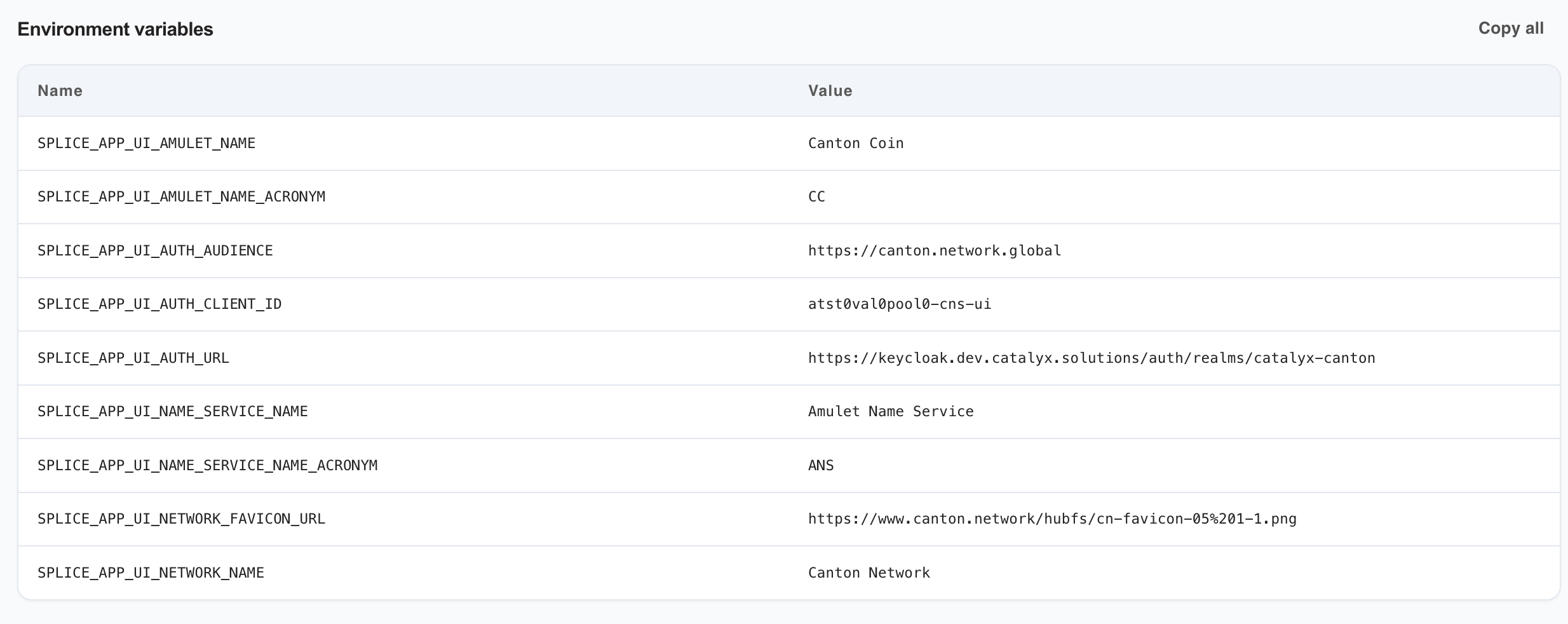

### Environment variables

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-43cc0d5e9c13e9eac29f742bf7f03ed6dcde3614%2Fimage%20(175).png?alt=media" alt=""><figcaption></figcaption></figure></div>

Every variable the operator set on the container, sorted by name, with a **Copy all** button that copies them as `NAME=value` lines.

{% hint style="info" %}
Values sourced from a Kubernetes Secret or another reference show a **`from secret`** or **`from ref`** badge instead of the value. Secret values are never displayed in the UI.
{% endhint %}

This is the most direct way to confirm how the operator configured a component — which auth URL the participant is using, which database it connects to, which network endpoints it was given.

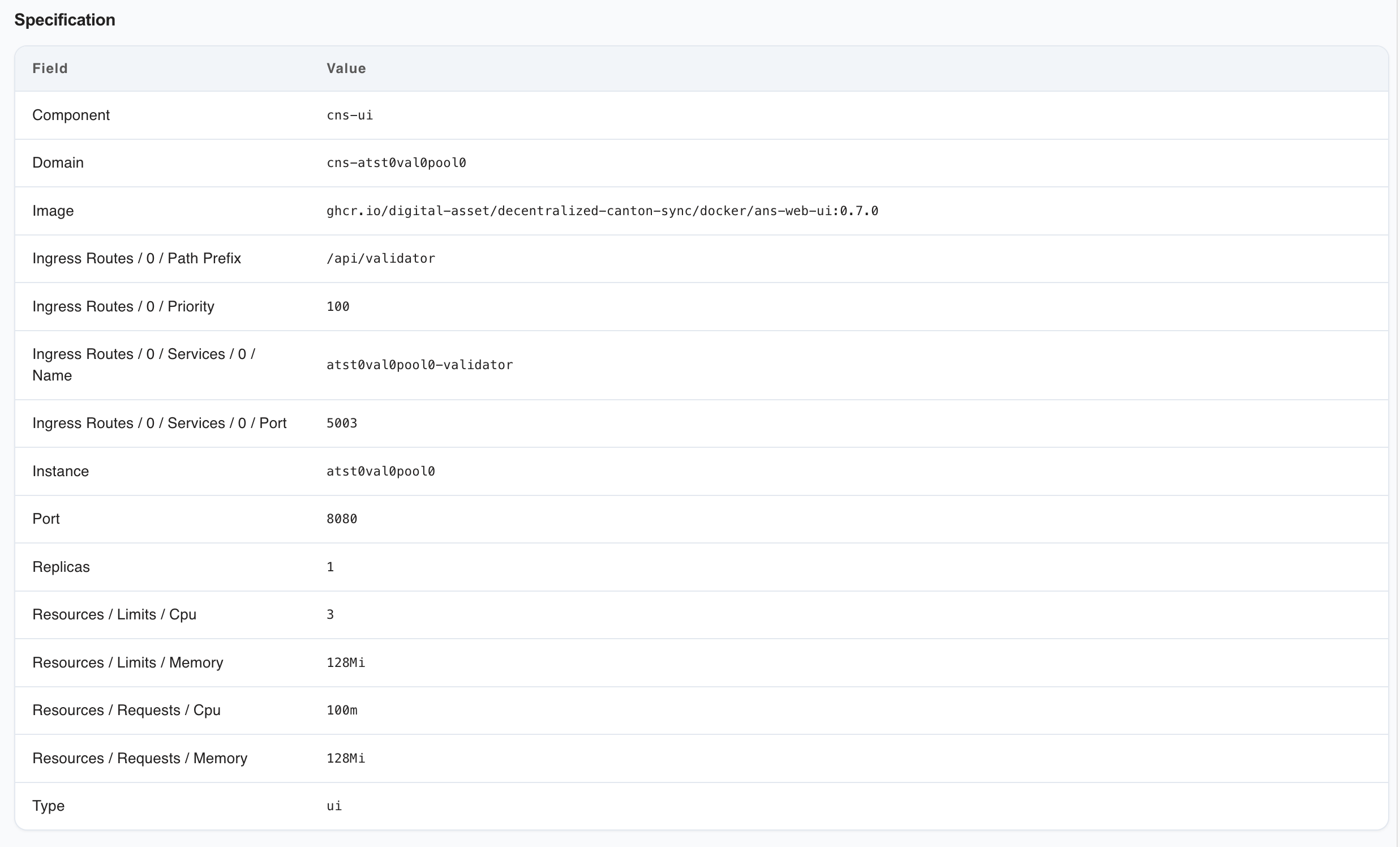

### Specification

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-370646431b72e1580463386f4126a3d1b4a7e249%2Fimage%20(176).png?alt=media" alt=""><figcaption></figcaption></figure></div>

The application resource's fields as **Field** / **Value** pairs, excluding the environment variables, which have their own section.


---
