# User Guide

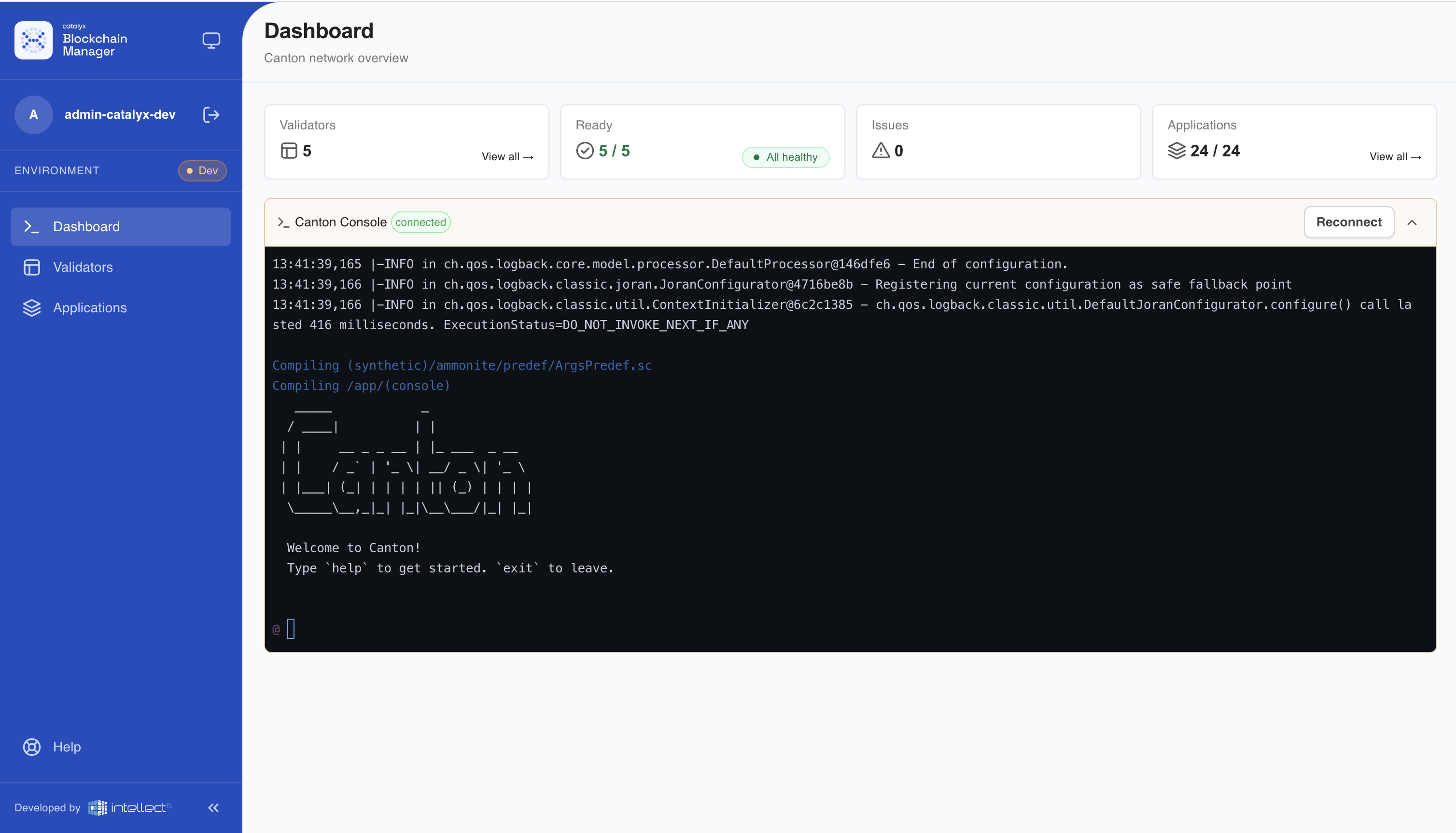

The CatalyX UI is a web application for operating Canton validators without direct cluster access. It talks only to the CatalyX API, never to Kubernetes or to the Canton nodes directly.

<div data-with-frame="true"><figure><img src="https://2680825251-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FsUGPGTcyMu8FXsdY8XQY%2Fuploads%2Fgit-blob-843402cb0fb6628bc946a92e4f489929ad61b149%2Fimage%20(150).png?alt=media" alt=""><figcaption></figcaption></figure></div>

***

## Overview

<table data-view="cards"><thead><tr><th></th><th></th><th data-hidden data-card-target data-type="content-ref"></th></tr></thead><tbody><tr><td><strong>Dashboard</strong></td><td>Fleet-wide health at a glance.</td><td><a href="/catalyx-blockchain-manager/canton-network/version-2.0/console-guide-canton/dashboard.md">Dashboard</a></td></tr><tr><td><strong>Validator Overview</strong></td><td>Every validator in the cluster, with live status.</td><td><a href="/catalyx-blockchain-manager/canton-network/version-2.0/console-guide-canton/validators-list.md">Validator Overview</a></td></tr><tr><td><strong>Validator Details</strong></td><td>The 13-tab detail view for a single validator.</td><td><a href="/catalyx-blockchain-manager/canton-network/version-2.0/console-guide-canton/validators.md">Validator Details</a></td></tr><tr><td><strong>Applications</strong></td><td>Component-level health and resource usage.</td><td><a href="/catalyx-blockchain-manager/canton-network/version-2.0/console-guide-canton/applications.md">Applications</a></td></tr><tr><td><strong>Canton Console</strong></td><td>An interactive Canton console in the browser.</td><td><a href="/catalyx-blockchain-manager/canton-network/version-2.0/console-guide-canton/canton-console.md">Canton Console</a></td></tr><tr><td><strong>Grafana</strong></td><td>Metrics and log deep links.</td><td><a href="/catalyx-blockchain-manager/canton-network/version-2.0/console-guide-canton/grafana-dashboards.md">Grafana Dashboards</a></td></tr></tbody></table>

***

## Navigation

The sidebar has three primary destinations:

|                  |                                                       |
| ---------------- | ----------------------------------------------------- |
| **Dashboard**    | Fleet-wide summary and the Canton console             |
| **Validators**   | The validator list, and every validator's detail view |
| **Applications** | Every component deployed for every validator          |

Below them, **Help** opens this documentation. The sidebar can be collapsed with **Cmd/Ctrl + `\`**.

### Environment badge

The sidebar shows which environment you are looking at, derived from the hostname you are on:

| Badge        | Shown when                                             |
| ------------ | ------------------------------------------------------ |
| `Local`      | The hostname is `localhost`, `127.0.0.1`, or `0.0.0.0` |
| `Dev`        | The hostname contains a `dev` or `staging` segment     |
| `Production` | Anything else                                          |

{% hint style="warning" %}
`Production` is the fallback, not a positive detection. Any hostname that does not look local or dev is labelled `Production`.
{% endhint %}

***

## How to read the UI

### Everything refreshes itself

There is no refresh button on most screens, and no "last updated" indicator — the UI polls continuously:

| Data                                                    | Interval  |
| ------------------------------------------------------- | --------- |
| Validator status, applications list, application status | 3 seconds |
| Resource metrics                                        | 5 seconds |

The Parties tab is the exception: its lists have an explicit **Refresh** button, because reading the synchronizer topology store is comparatively expensive.

### Status vocabulary

The UI uses a small, consistent set of status words. Two of them are worth learning precisely, because they mean different things in different places.

**Validator readiness**

| Value      | Meaning                                                |
| ---------- | ------------------------------------------------------ |
| `Ready`    | Every component the validator owns is ready            |
| `Degraded` | At least one is not (shown on the lists and Dashboard) |

On the validator detail header, a validator that is not ready shows the underlying **reason** instead of the word `Degraded` — which is more specific and worth reading.

**Participant connection**

| List page      | Detail page    | Meaning                                                                                       |
| -------------- | -------------- | --------------------------------------------------------------------------------------------- |
| `Live`         | `Connected`    | The participant is initialised and its synchronizer connection is healthy                     |
| `Disconnected` | `Disconnected` | Initialised, but the synchronizer connection is unhealthy                                     |
| `Initializing` | `Initializing` | The participant is still starting up                                                          |
| `Not live`     | *(no badge)*   | No participant status was returned — usually still loading, or the participant is unreachable |

**Health values** on participant components and synchronizers are the raw values Canton reports, colour-coded: `ok` and `healthy` are good, `degraded` is a warning, `failed`, `fatal`, and `unhealthy` are errors, and anything else is treated as unknown.

**Kubernetes conditions** appear as `True`, `False`, or `Unknown`.

### Copying identifiers

Party IDs, package IDs, endpoints, and other long values are truncated for display, with the full value in a tooltip. A copy button beside each one copies the **complete** value, never the truncated form, and confirms with a brief toast.

### Tables

All tables in the UI behave the same way:

* Columns can be resized, and your widths are remembered per table.
* Rows that lead somewhere are clickable, and respond to Enter or Space.
* Some rows expand to reveal detail, via a chevron on the left.
* Narrow screens fall back to a card layout instead of a horizontal scroll.
* Tables with many rows paginate at 10 rows, with a page size selector offering 10, 25, 50, or 100.

***

## What the UI does not do

Being clear about this up front saves time hunting for a button that is not there.

<table><thead><tr><th width="290">Not in the UI</th><th>Where it lives instead</th></tr></thead><tbody><tr><td>Creating, editing, or deleting a validator</td><td>Apply or delete a <code>Validator</code> custom resource — see <a href="/catalyx-blockchain-manager/canton-network/version-2.0/validator-management/create-a-validator.md">Create a Validator</a></td></tr><tr><td>Creating, editing, deleting, scaling, or restarting an application</td><td>The operator owns these. Change the <code>Validator</code> resource</td></tr><tr><td>Ledger pruning</td><td>Not exposed in 2.0. Use the <a href="/catalyx-blockchain-manager/canton-network/version-2.0/console-guide-canton/canton-console.md">Canton console</a></td></tr><tr><td>Traffic purchases or balance top-ups</td><td>Not exposed in 2.0. The Balances and Traffic tabs are read-only</td></tr><tr><td>Generating, rotating, or importing participant keys</td><td>Not exposed in 2.0. The Keys tab is read-only</td></tr><tr><td>Full-text search across validators</td><td>Search exists within the DAR packages list and the Parties tab only</td></tr></tbody></table>

## Permissions

The UI requires a valid OIDC token from the identity provider configured at install time. Any user who can authenticate can reach every screen, including the operations that change ledger state.

{% hint style="danger" %}
There is no per-validator or per-screen authorisation inside the UI in 2.0. Restrict who can obtain a token for the UI client in your identity provider, and treat UI access as privileged — the [Canton console](/catalyx-blockchain-manager/canton-network/version-2.0/console-guide-canton/canton-console.md) in particular grants full administrative access to the participant.
{% endhint %}


---
